TA-200B series armoured temperature transmitter

TA-200B Series

Armoured temperature transmitter

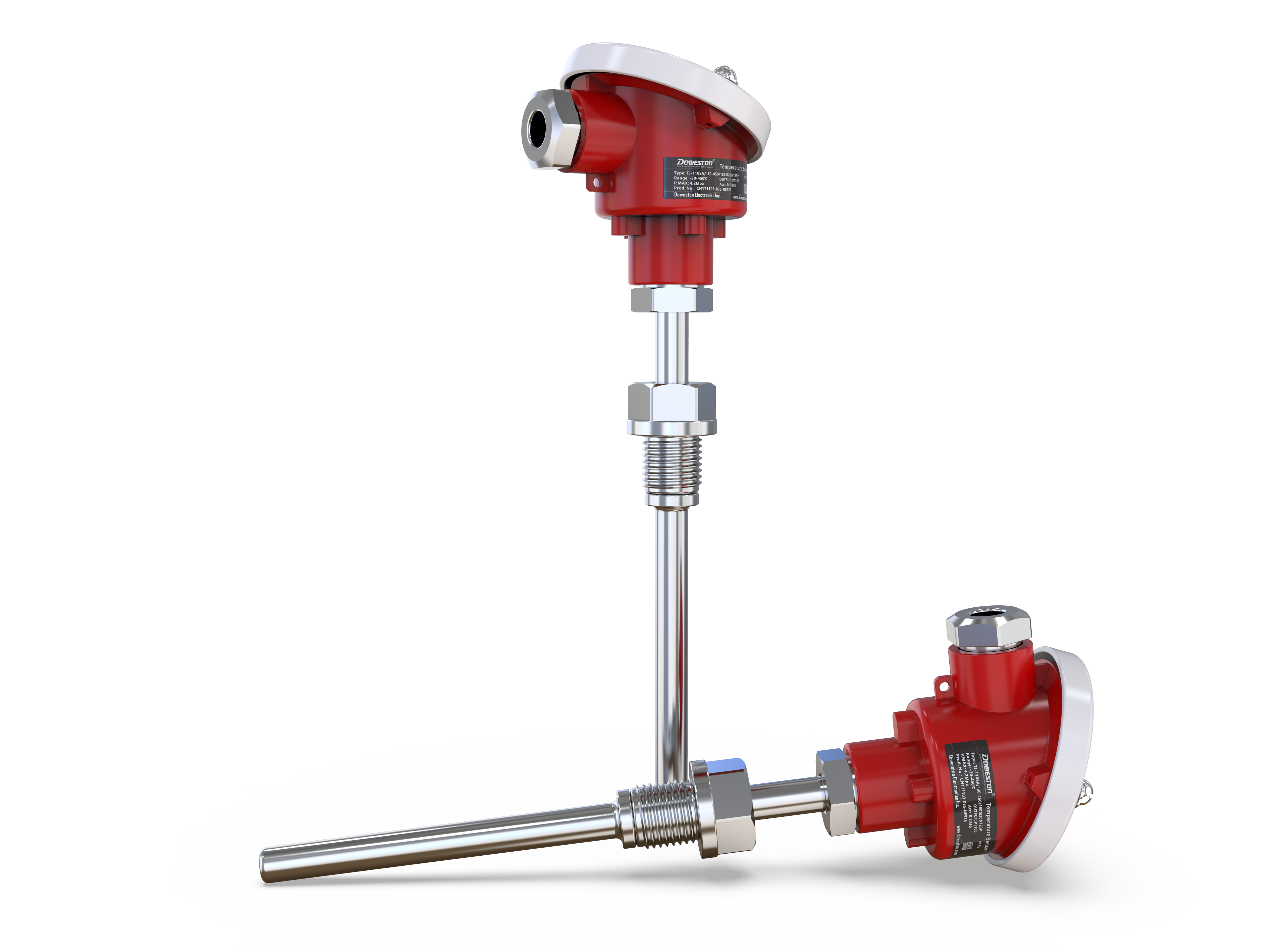

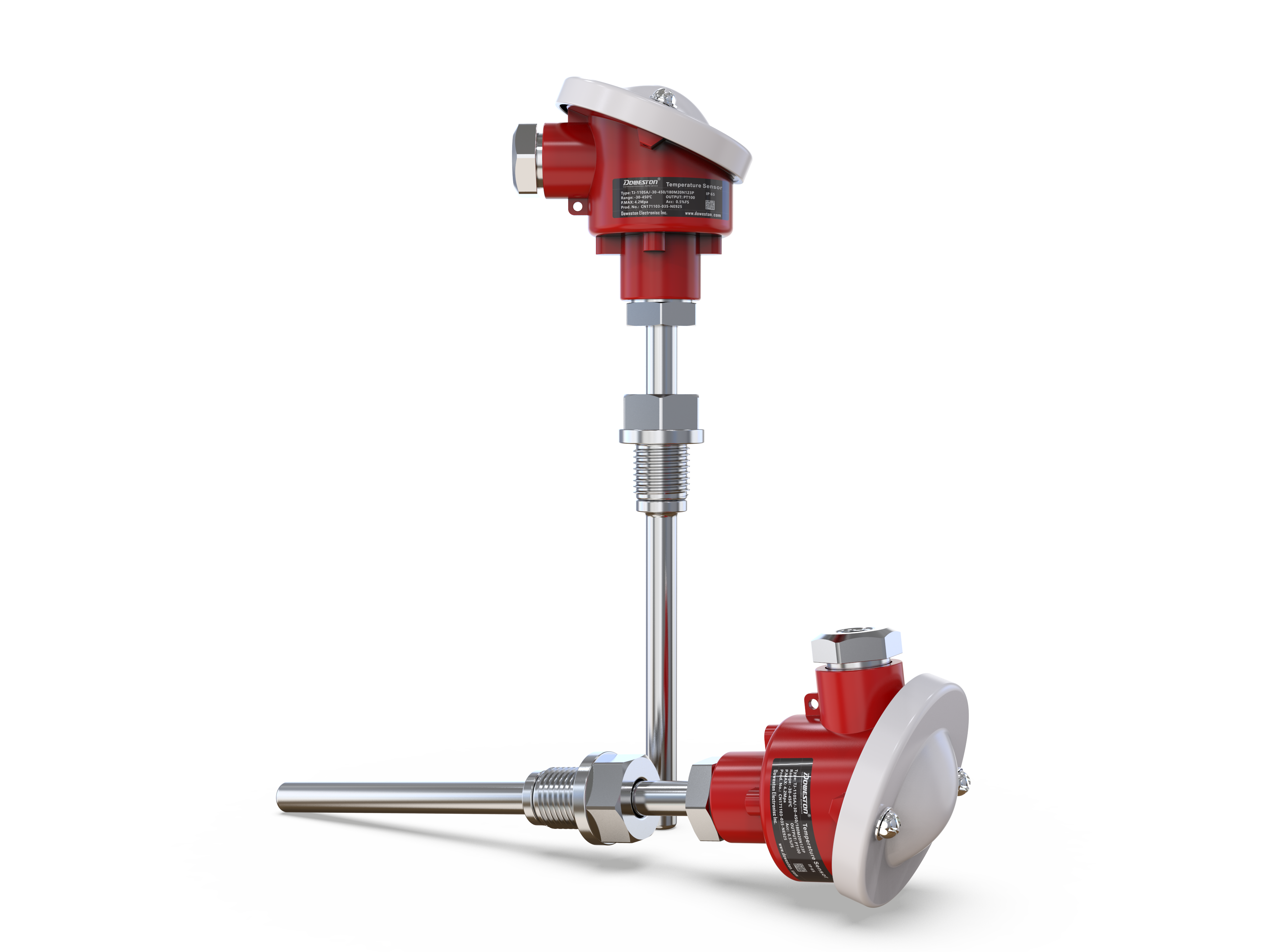

TA-200B armored temperature transmitter contains a thermal resistance/thermocouple temperature probe. The probe detection value changes with the temperature, and the circuit in the transmitter part converts it into a linear analog output. It has high precision, a wide range of measurement, imported thin film resistance components, reliable and stable performance and many other advantages, cast aluminum alloy, high temperature and high pressure resistance, suitable for electrical industry, heat medium boiler, cooling system and the vast majority of industrial automation control temperature measurement.

Inquiry this Products

Product Selection

Expert Q&A

5% off for new customers

Specification

Technical parameters

Document

Specification

Performance Features

The theory of product:
TA-200B armored temperature transmitter is composed of reference unit, R/V conversion unit, linear circuit, reverse protection, current limiting protection, V/I conversion unit, etc. After the amplification of the thermal resistance signal, the nonlinear relationship between temperature and resistance is compensated by a linear circuit. After the V/I conversion circuit, a constant current signal of 4 ~ 20mA with a linear relationship with the measured temperature is output.

Application field:
TA-200B armored temperature transmitter is suitable for water treatment control equipment, electrical industry, Marine hydraulic equipment, hydraulic and hydropower, chemical, petrochemical industry equipment and thermal coal boiler, pneumatic, hydraulic, cooling system, heating system, automation engineering, etc. The product is suitable for medium and low temperature area temperature detector.

Features:
■ Simple wide installation, multi-range optional, a variety of specifications of the probe optional
■ Soft sheathed cable with anti-vibration measuring plug-in

■ Good mechanical properties, vibration resistance, impact resistance

■ Small measurement lag in thermal inertia

■ Compact structure, few moving parts, wide range (-200-1800℃).

■ High precision and repeatability, with temperature compensation.

■ Withstand pressure, shock and humidity, suitable for installation in harsh field environment.

■ Thermocouple temperature transmitter with cold end temperature automatic compensation function.

■ Thermal resistance, thermocouple signal input, 4-20mA or thermal resistance, thermocouple signal output

Technical parameters

Sensor	Thermal resistance, thermocouple
Measure range	-270-1800℃
Probe length	20-1000mm
Probe diameter	3、6（standard）、8mm
Output	0-10V、4-20mA，Thermal resistance 、thermocouple
Accuracy	A class、B class
Repetition accuracy	≤0.3%FS/year
Error	±0.3K+0.005XT
Linearity	＜0.1%
Resolution	0.1K
Temperature effect	0.1K/10K
Response time	T50,2.3S T90,5S
Display	Optional split display table
Operating voltage	24V DC
Ambient temperature	-20-80℃
Working pressure	4.0MPa
Material	Body: cast aluminum alloy
	Probe: Stainless Steel 316L (special casing can be customized)
	Display table: engineering plastics, PC
Compensating cable	Silica gel: environment -50~180℃
Compensating cable	Metal mesh: environment -20~350℃
Protection class	Electrical part IP67
Electrical connection	Junction box connection
Electrical protection	Reverse protection, overload protection, short circuit protection
Installation mode	Threaded connection, flange connection
Seal	Thread seal, manufacturer's standard
Attachment	Optional fireproof sleeve

IEC International standard
Thermal resistance type	Electrode material	Temperature range
PT10	Platinum resistance	-200~850℃
PT100	Platinum resistance	-200~850℃
PT1000	Platinum resistance	-200~850℃
Cu50	Copper resistance	-50~150℃
Cu100	Copper resistance	-50~150℃

Thermocouple indexing number	Positive electrode material	Negative electrode material	Temperature range
S	platinum-rhodium 10	Pure platinum	-50~1768.1℃
R	platinum-rhodium 13	Pure platinum	-50~1768.1℃
B	platinum-rhodium 30	Pure platinum 6	0~1820℃
K	Nichrome	Nickel silicon	-270~1372℃
T	Pure copper	Copper-nickel	-270~400℃
J	Iron	Copper-nickel	-210~1200℃
N	Nichrome silicon	Nickel silicon	-270~1300℃
E	Nichrome	Copper-nickel	-270~1000℃
