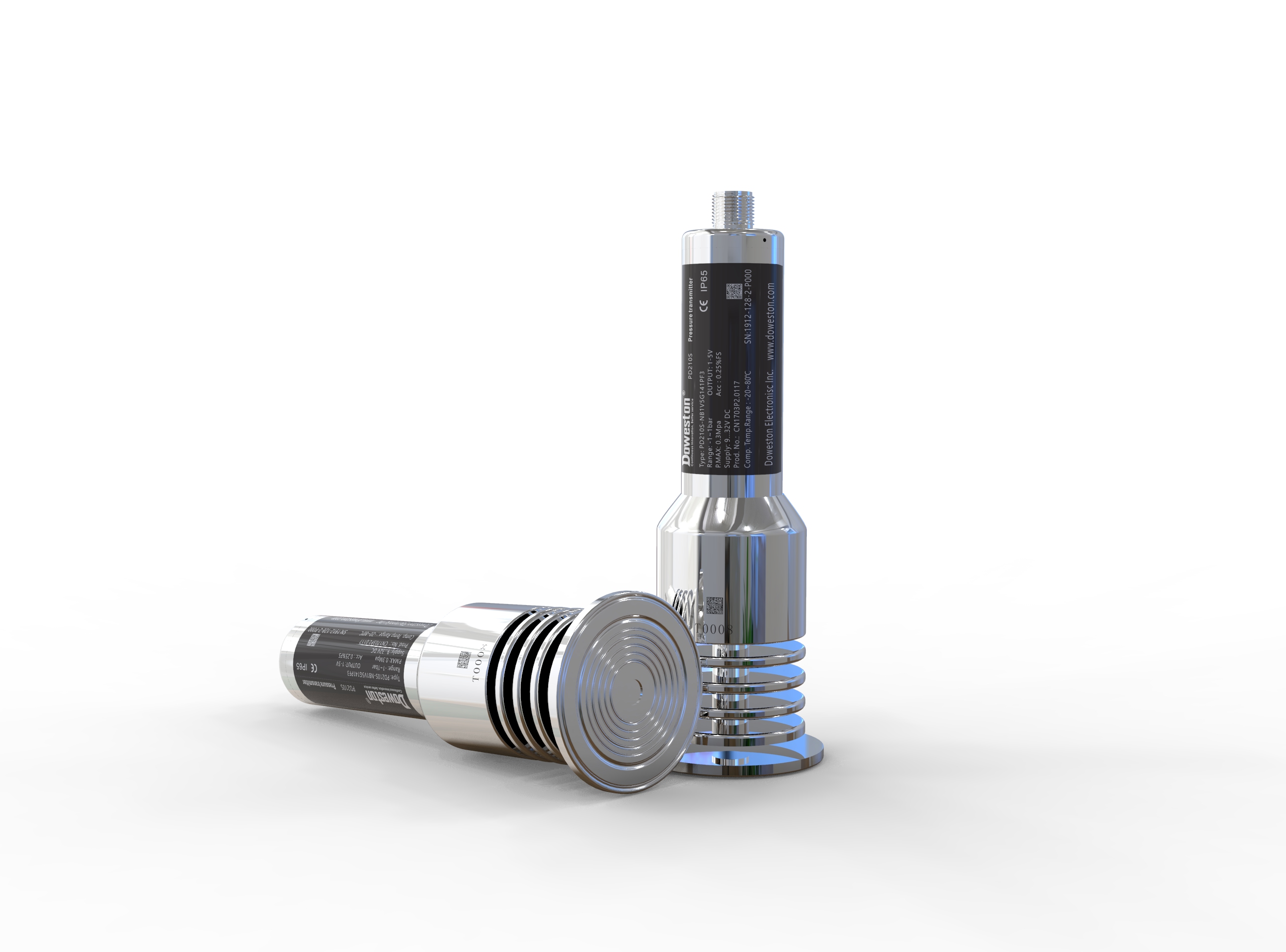

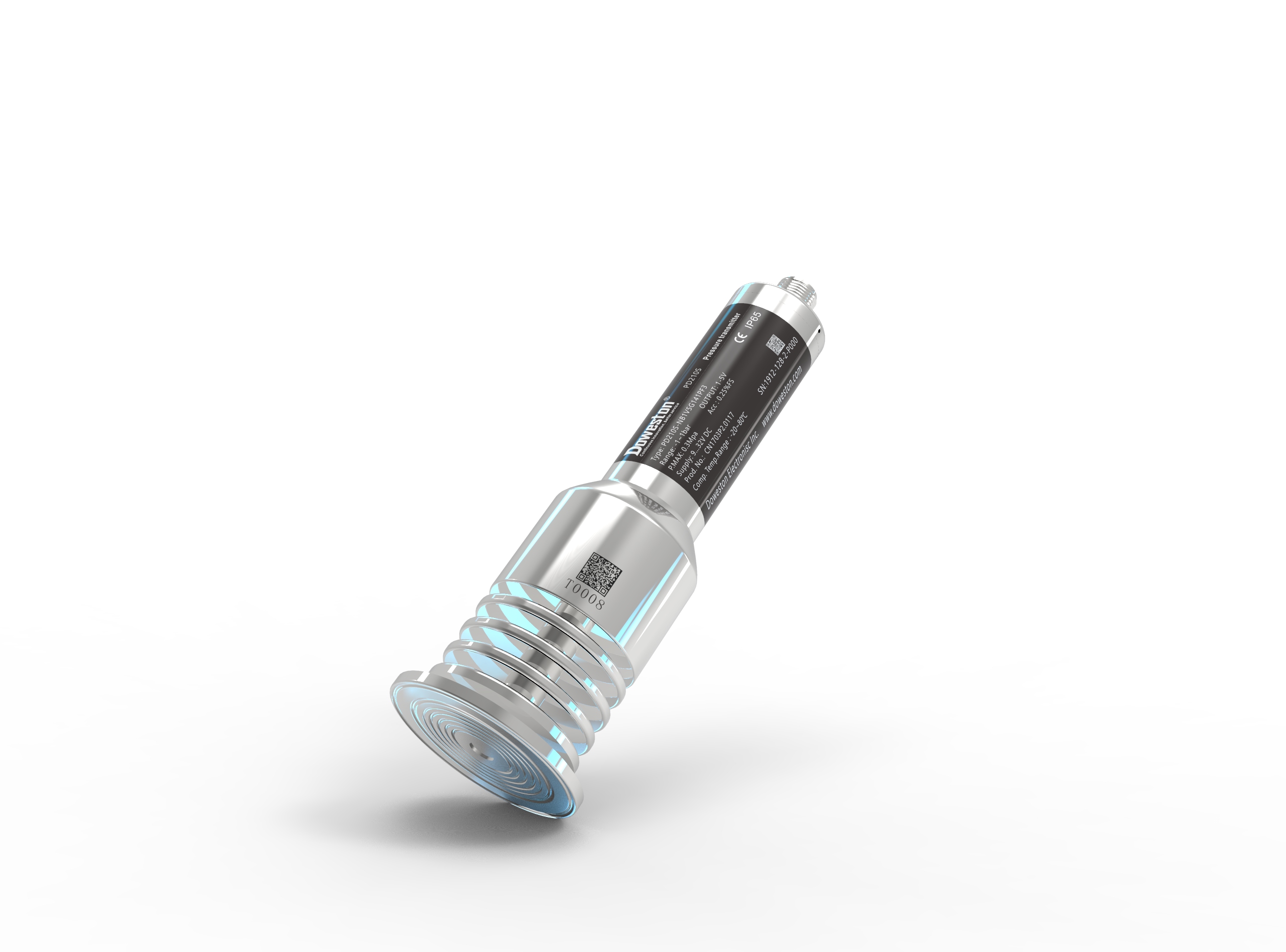

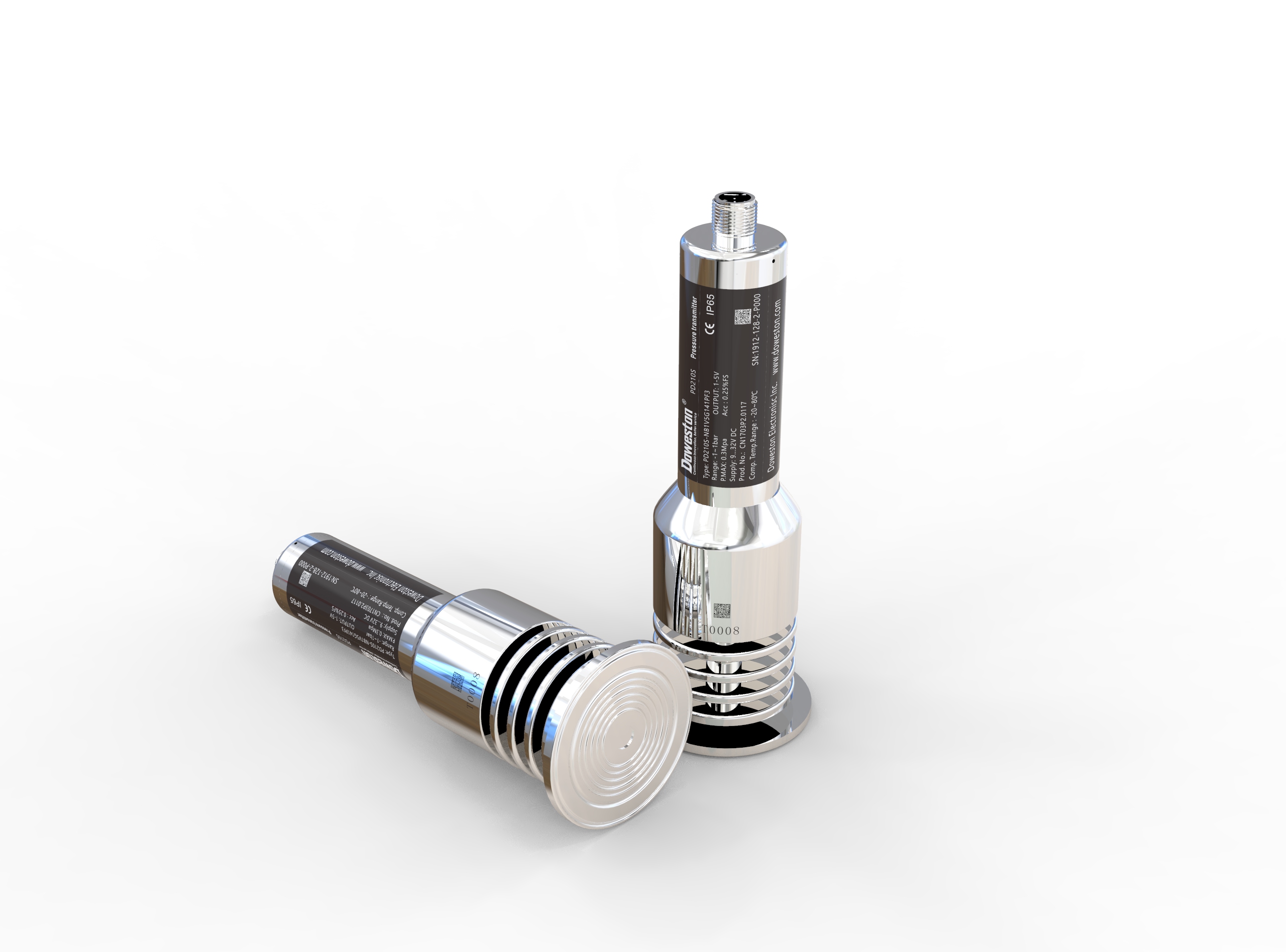

PD-210Q Series diaphragm type pressure transmitter

PD-210Q Series

Diaphragm type pressure transmitter

PD-210Q diaphragm type pressure transmitter combined with the new diffused silicon sensing element, with circuit processing and temperature compensation technology, the pressure change into a linear standard current or voltage signal, suitable for a certain corrosive, viscous, amorphous fluid, gas medium, information output diversity, chuck, flange and other connection modes, because of the end face diaphragm, This transmitter can also be used for viscous, highly viscous or crystalline media that can meet most health grade measurement requirements.

Inquiry this Products

Product Selection

Expert Q&A

5% off for new customers

Specification

Technical parameters

Document

Specification

Performance Features

Performance characteristics：
PD-210Q diaphragm type pressure transmitter is based on the prototype of universal pressure transmitter, and it is formed by installing the welded sealing diaphragm structure. Its welding seal isolation diaphragm device has a variety of different process connection structure, especially suitable for high temperature, high viscosity and easy to plug the pressure measurement, also suitable for health, medical occasions.

■ Measuring medium: corrosive, viscous, non-crystalline fluid, gas medium

■ Measuring range :-0.1-10MPa

■ Comprehensive accuracy :±0.25%FS

■ Diaphragm material: Stainless steel 316L

■ Operating temperature :-40-120℃

■ Overload pressure :150%FS

■ Bursting pressure :200%FS

■ Output: 4-20mA, 0-5V, 0-10V, etc

■ Process connection: chuck, flange

■ Protective connection: aviation plug, Halsman joint, waterproof gran

■ Seal: fluorin rubber

Technical parameters

Applicable media	Corrosive, viscous, amorphous fluid, gas medium
Measurement range	-0.1-10MPa
Comprehensive precision	± 0.25%FS
Repeat Precision	≤± 0.1%FS/year
Zero temperature drift	±0.02FS/℃
Input voltage	12-36V DC
Output	4-20mA, 0-5V, 0-10V, etc.
Working temperature	-40-120℃
Overload pressure	150%FS
Bursting pressure	200%FS
Ambient temperature	-40-80℃
Response time	＜1ms (10...90%FS)
Vibration resistance	±20g 20-5000Hz
Lifetime	＞1*10^8 pressure cycles
Liquid texture	Stainless316L
Shell Material	Low copper aluminum alloy, stainless steel
Protection level	Electrical part IP65 (optional IP68)
Electrical connection	Terminal, aviation plug, Halsman connector
Electrical Protection	Overload/Reverse Phase Protection
Seal	Fluorine rubber
Installation method	Thread, flange
Weight	About 0.4kg

Document

Brochures

Product Manuals

Drawings and Software
