PD-750QC Series Sanitary Differential Pressure Transmitter

PD-750QC Series

Sanitary Differential Pressure Transmitter

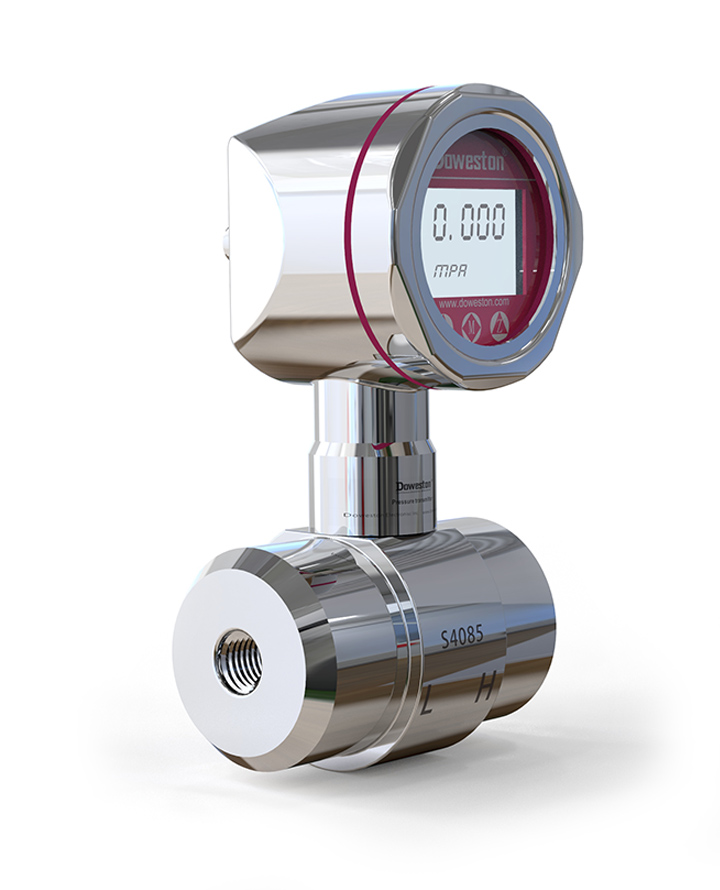

PD-750QC Sanitary Differential Pressure Transmitter adopts monocrystalline silicon sensor,The design is compact and compact, the middle part of the welding process diaphragm is made of high-quality stainless steel 316L, the roughness is Ra≤0.4μm, Compliant with aseptic standards, the filling liquid meets FDA hygiene standards, and has various international standard process connections, the fully isolated sealing structure eliminates the influence of humidity, suitable for harsh wet cleaning occasions, Suitable for CIP/SIP cleaning and sterilization, with on-site display function,The information output is diversified, with a variety of connection methods such as chucks, clamps, flanges, etc., can meet most sanitary requirements Measurement requirements for class requirements.

Inquiry this Products

Product Selection

Expert Q&A

5% off for new customers

Specification

Technical parameters

Document

Specification

Performance Features

Performance characteristics:

PD-750QC The crystalline silicon pressure sensor technology and the patented packaging process are carefully crafted into a robust and sanitary pressure transmitter. Adhering to the design concept of fully satisfying harsh use occasions, the PD750Q monocrystalline silicon sanitary pressure transmitter adopts a fully isolated and sealed structure to eliminate the influence of humidity and is suitable for harsh wet cleaning occasions; the double diaphragm overload protection structure can withstand a pressure of 42MPa, It is suitable for severe pressure overload occasions; the transient voltage resistance meets the four-level standard (differential mode voltage: 2000V, common mode voltage: 4000V), suitable for harsh surge voltage occasions; 20 linear points in seven temperature zones, 160 pressures Calibration point, suitable for severe temperature changes.

Product advantage:

■ Single crystal silicon pressure sensor, double diaphragm overload protection structure, calmly cope with high overload test.

■ Special integrated circuit and signal transmission module of surface packaging technology, the key parameter operation function is friendly, and the measurement data can be displayed quickly.

■ ISO228, DIN3256 and other complete global standard or industry standard process connections, exquisite stainless steel welding technology and surface treatment technology, in line with hygienic standards.

■ Rugged one-piece stainless steel housing ensures long life.

■ Stainless steel surface roughness Ra≤0.4μm, in line with sterile standards.

■ Warranty: Up to 3 years valid warranty

Field of application:

■ PD-750QC Sanitary Differential Pressure Transducer The transmitter is widely used in food, brewing, pharmaceutical and other industrial fields to realize the measurement of liquid, gas and steam pressure.

Technical parameters

Applicable media	Medicines, food, milk, beer, beverages, juices…
Measuring range	-1-4MPa
Turndown ratio	1:100
measurement accuracy	±0.075%FS, ±0.1%FS, ±0.2%FS, ±0.5%FS
stability	Up to ±0.10% of upper range limit (URL), 60 months
pressure type	Gauge pressure, absolute pressure, negative pressure, high static pressure, micro pressure
show	LED on-site display
menu adjustment	Adjustment via Hart Communicator
input voltage	12-36V DC
output	4-20mA, RS485, Hart, etc.
Operating temperature	-35-125°C
Overload pressure	150%FS
bursting pressure	300%FS
error alarm	Self-diagnostic program detects fault, analog output is higher than 20.8mA or lower than 3.8mA, alarm, high/low flag is adjusted by HART communication
ambient temperature	-40-80℃
response time	<1ms (10...90%FS)
refresh time	0.25S
service life	＞1*10^8 pressure cycles
Liquid contact material	Stainless Steel 316L, Hastelloy C, Monel, Tantalum
shell material	stainless steel
Protection class	Electrical part IP67 (optional IP68)
Electrical connections	Aviation plug
electrical protection	Overload/Reverse Phase Protection
Explosion proof	Intrinsically Safe ExiaIICT4
sealing material	Silica gel
Installation method	Chucks, clamps
weight	Approx. 1.4kg
