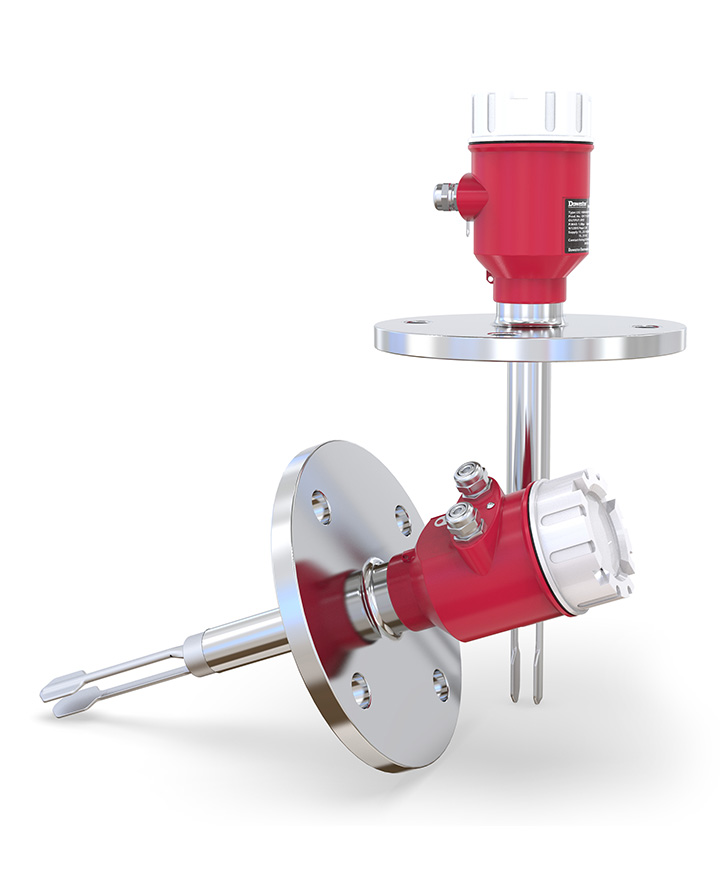

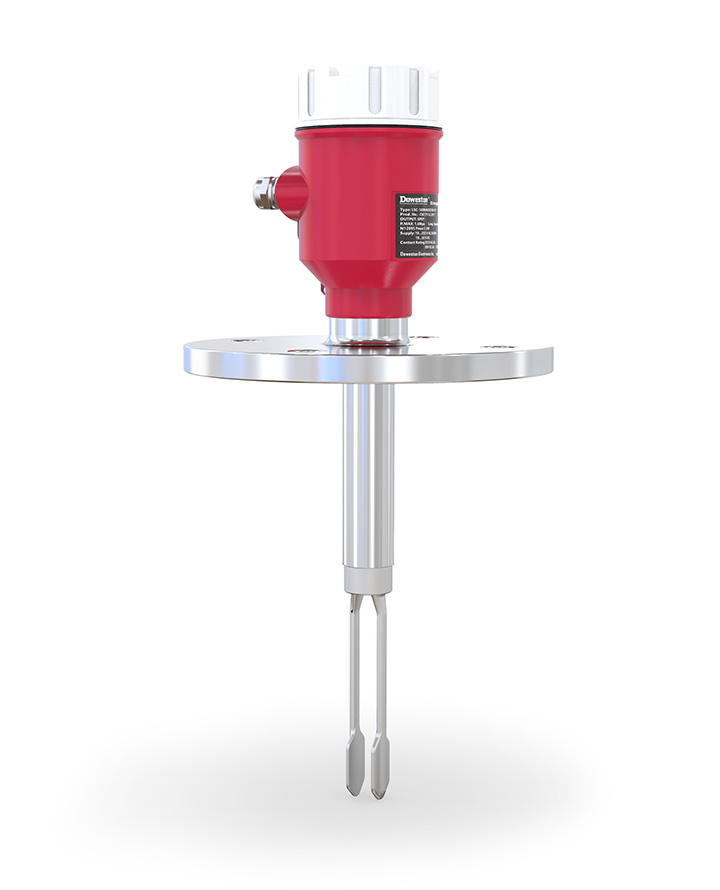

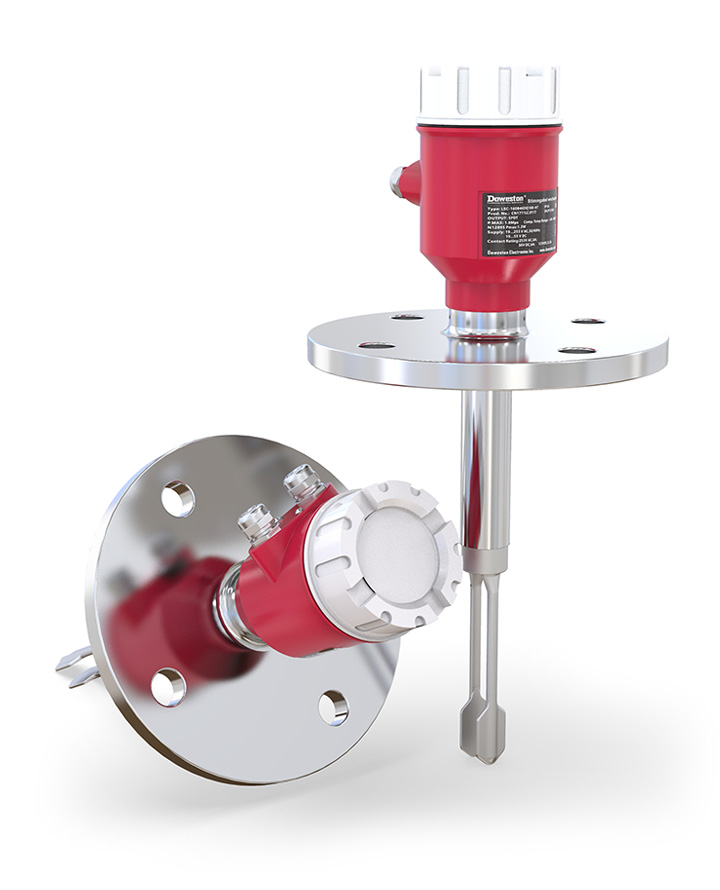

LSC-100 Series

Product information：

■ Applicable solid: medium density solid powder or particle that can flow freely. For example, fly ash, cement, sand, stone powder, plastic particles, salt, sugar and so on

■ Applicable liquid: measuring explosive and non-explosive dangerous liquid, corrosive liquid (acid, alkali solution, etc.) high viscosity liquid water, acid, alkali, mud, pulp, dye, oil, milk, alcohol, drinks, etc.

■ Tuning fork material: stainless steel (optional PP, PTFE)

■ Overload pressure :35bar

■ Blasting pressure :40bar

■ Operating temperature :-20℃~75℃

■ Display :LCD indicator output (optional)

■ Output: 2 groups of normally open, normally closed contacts; 0-10mA

■ Response time: < 3ms (10... 90%FS)

■ Process connection: thread, flange

■ Protection grade: Electrical part IP65

■ Electrical connection :M18x1.5; M20x1.5(Explosion-proof) (Customizable)

■ Explosion-proof rating :ExdIICT6,NEPSI

■ Seal: fluorin rubber
