FTW-1600L Series

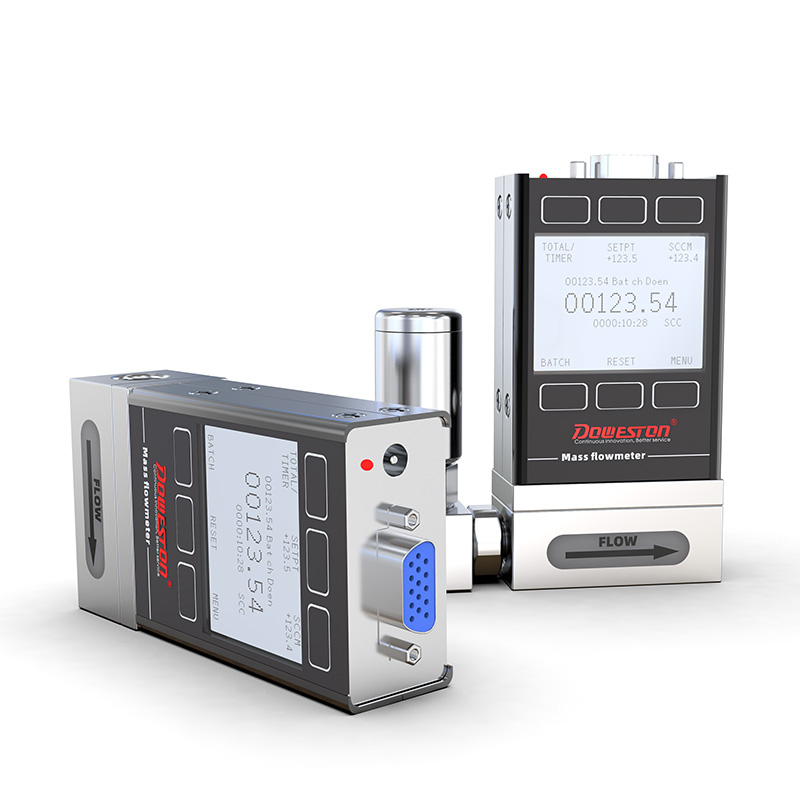

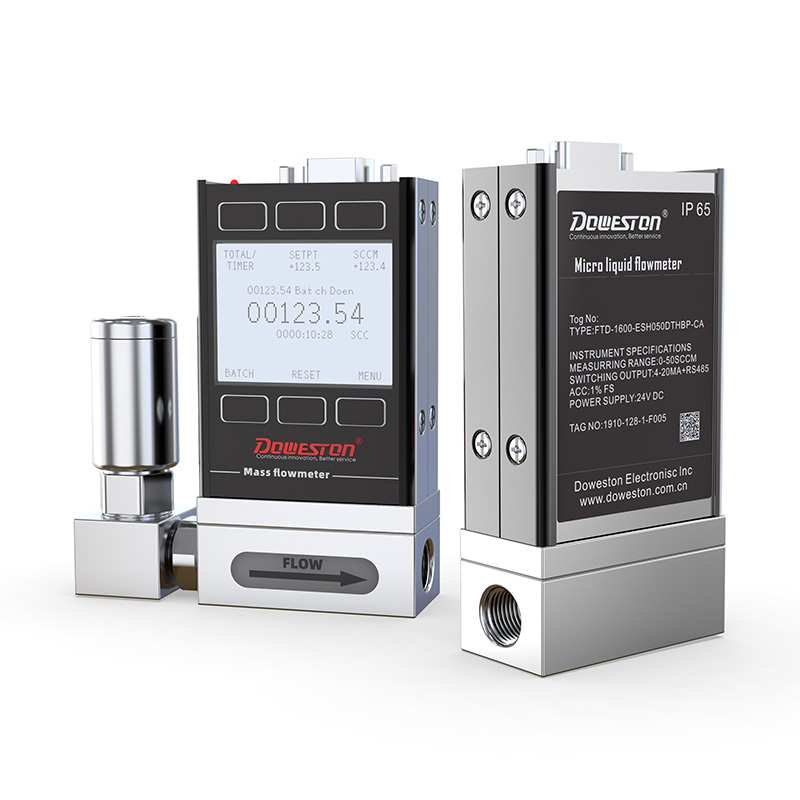

Micro liquid flowmeter

The micro-flow float flowmeter is designed based on the principle of magnetic coupling and is suitable for measuring the micro-volume flow of liquid and gas.

Inquiry this Products

Product Selection

Expert Q&A

5% off for new customers

Specification

Technical parameters

Document

Specification

Performance Features

The limited small range of this product is 3ml/min. It has excellent performance in low flow rate and slow flow condition. It is the best choice for flow measurement in laboratory, test and other field occasions.

Performance characteristics：

● 3ml/min range,
● A variety of connection, easy to install and use
● Short response time
● In the air machine electronic watch has excellent performance
● Variable mechanical connection can be easily installed in different application environments

Technical parameters

Nominal pipe diameter	DN1-8
Measuring range	3ml-350ml/min
Range ratio	100:1
Precision grade	±(1.5+0.2FS)%
Repeatability error	0.25%
Zero output drift	±30mV
Output drift	±0.12%/℃
Response time	10 (Default, 20,50,100,200,500,1000 can be set)
Working power supply	8 ~ 18Vdc,50mA
Output mode	RS485, RS232, analog voltage 0.5 to 4.5Vdc

Document

Brochures

Product Manuals

Drawings and Software
