LPD-750C Differential Pressure Level Gauge is a pressure transmitter carefully developed using advanced single crystal silicon pressure sensor technology and patented packaging technology. The single-crystal silicon pressure sensor is located at the top of the metal body, away from the contact surface of the medium, to achieve mechanical and thermal isolation; the sensor lead integrated with glass sintering achieves high-strength electrical insulation from the metal matrix, improving the flexibility of the electronic circuit and resistance to transients. The ability of variable voltage protection. These original single-crystal silicon pressure sensor packaging technologies ensure that the single-crystal silicon pressure transmitter can cope with extreme chemical occasions and mechanical loads, and at the same time has strong anti-electromagnetic interference capability, which is sufficient for the most demanding industrial environment applications. A veritable invisible instrument.

LPL-750E single-flange hydrostatic level gauge is an ultra-high-performance pressure transmitter carefully developed using advanced single-crystal silicon pressure sensor packaging technology. The single-crystal silicon pressure sensor is located at the top of the metal body, away from the contact surface of the medium, to achieve mechanical and thermal isolation; the sensor lead integrated with glass sintering achieves high-strength electrical insulation from the metal matrix, improving the flexibility of the electronic circuit and resistance to transients. The ability of variable voltage protection. These original single-crystal silicon pressure sensor packaging technologies ensure that the single-crystal silicon pressure transmitter can cope with extreme chemical occasions and mechanical loads, and at the same time has strong anti-electromagnetic interference capability, which is sufficient for the most demanding industrial environment applications.

The LPL-310A Unvented Submersible Level Transmitter is applied when atmospheric pressure is measured by a separate barometer and when the water level is calculated as the difference between the absolute value and the ambient pressure.

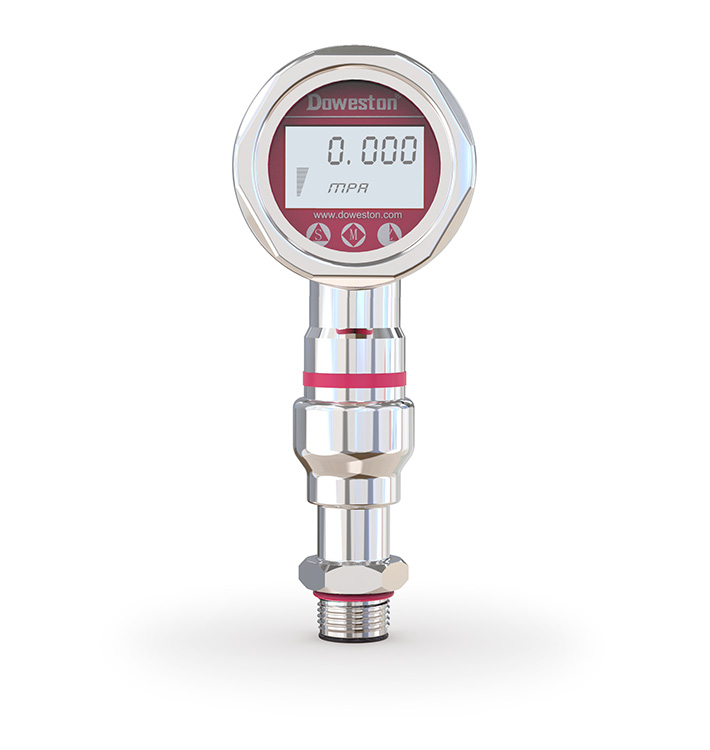

PD-310SQ pressure level gauge, suitable for food, medicine and other industries, suitable for CIP/SIP cleaning and disinfection. The design is compact and compact, the middle part of the welding process diaphragm is made of high-quality stainless steel 316L, the roughness is ≤0.4μm, the filling liquid meets the FDA hygiene standard, and there are various international standard process connections.

This series of products is a pressure sensor/transmitter produced by traditional strain sensor technology. This product has a wide measurement range and diversified signal output. It is a product suitable for various fields. The product adopts stainless steel structure, and the pressure core is selected from the industry High-quality brand, dedicated transmitter conversion circuit can easily perform zero and full scale calibration.

■The product can be connected to meter, recorder, computer, PLC program controller or alarm, etc. ■The sensing head is a stainless steel diaphragm, which can be used for viscous, weak acid, weak alkali, and fluid liquids containing scale or magazines. ■The internal temperature compensation is included, and the long-term operation stability is high. ■There are many kinds of flanges and mouths for customers to choose.

■Measurement range: 5mH2O-200mH2O ■Output signal: 4-20mA, 4-20mA+HART, 0.5-4.5VDC, Modbus-RTU/RS485, others ■ Reference accuracy: ±0.2% URL, ±0.5% URL ■Medium temperature: -10~70℃ ■Sensor type: Piezoresistive silicon pressure sensor Diaphragm: 316 stainless steel ■ Stability: ±0.2% URL/year Sensor seal: O-ring (FKM), stainless steel welded

■The product can be connected to meter, recorder, computer, PLC program controller or alarm, etc. ■The sensing head is a stainless steel diaphragm, which can be used for viscous, weak acid, weak alkali, and fluid liquids containing scale or magazines. ■The internal temperature compensation is included, and the long-term operation stability is high. ■There are many kinds of flanges and mouths for customers to choose.
